Hood Mounted Filtration Cabinet

The BV100H – A1 Re-circulatory Spray Booth is a general purpose hood mounted filtration cabinet and workstation for light aerosol spray and airbrush use and fume/vapour absorption and dilution. It has a big working space, and can accommodate up to an A1 size artwork, as well as prototypes, scale models, ceramics, PCBs and more.

It will extract fumes and filter particles created by:

• Aerosol Adhesives
• Lacquers
• Fixatives
• Airbrush Sprays
• Solders
• Light Grinding

Key Features

• A2 or A1 drawing boards can be placed into the hoods at an angle for efficient overspray capture.
• The workstation hood also accommodates prototypes, models, ceramic parts, PCBs etc, placed onto the hood base to be sprayed, soldered, cleaned, glued, moulded, sanded etc.

What’s included with the BV100H?

• BV100H Filter unit with 2 axial fans
• Hood Enclosure
• 1 x Particulate filter IFA2
• 1 x Charcoal Impregnated fibre filter CHA2
• Power Lead
• Data/Warranty Booklet

All BenchVent filtration and extraction systems carry a lifetime guarantee.

Specification:

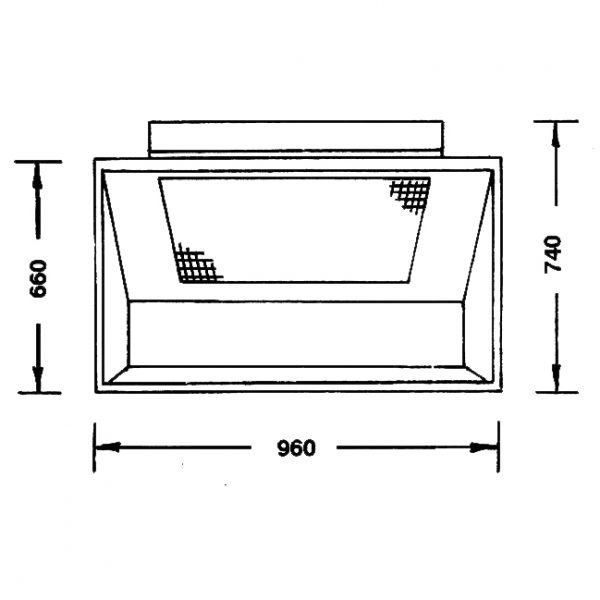

• Dimensions: 960x660x620 (wxhxd) [internal] 960x740x720 (wxhxd) [overall]
• Weight:- 125KG
• Air Volume at Free Air – 650 m3/hr
• Ave. Air Velocity at Filter Face – 0.50 m/sec
• Ave. Air Velocity at Hood Face – 0.25 m/sec
• Fan Motor Spec – 230V, 50Hz, 80W, 115V 60Hz 85W
• Filters – Particle Filter – IFA2, Charcoal Filter -CHA2, Filter Kit – FKA2
• Noise Level LAeq dB(A) – 61 db(A)
