Microscope B-150d-brpl

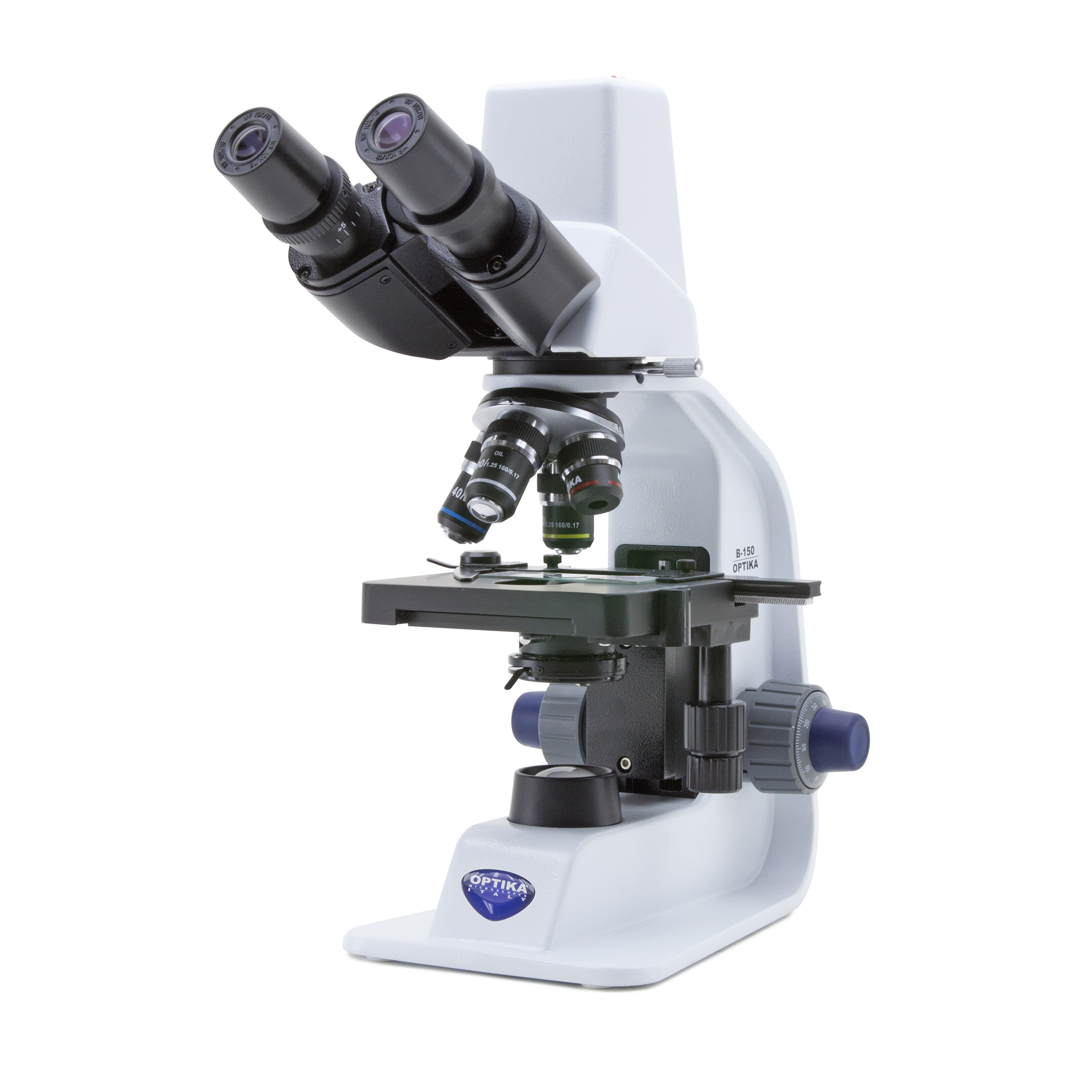

The Optika B-150D-BPRL Digital Binocular LED microscope is a fully functioning compound microscope with additional imaging capabilities. It is a brilliant and robust instrument that is suitable for experienced users who want to document their investigations. Use the digital camera for taking great shots that will supplement any report that will capture the essence of the work. The microscope has a WF10X/18mm eyepiece, which can be removed to allow the insertion of an eyepiece micrometer when necessary, with up to 1000x total magnification and rechargeable battery. Equipped with mechanical stage, efficient 3.6W X-LED illumination with adjustable intensity and N-PLAN objectives. Includes the easy to use OPTIKA Vision Lite or View Software for Windows.

Accessories included:

• Power Supply
• OPTIKA Vision Lite software disc
• 1.8M USB Cable
• Dust Cover
• Instruction Manual

Accessories available separately:

• Eyepiece Micrometer M004 (B8R06422)
• Stage Micrometer (B8A76119)
• Alcohol-free Antiseptic Wipes – for cleaning eyepieces between use (B8R08715)
• Lens Cleaning Tissue (B8R07090)
• Microscope Maintenance Kit (B8R07243)

Technical Specifications:

Optika B-150D-BRPL Microscope Specification:

• Total magnification: 1000x (4x, 10x, 40x, 100x objectives)
• Eyepieces: Wide field WF10x/18mm
• Head: Binocular, 360° rotating, with 30° inclined eyepiece tube. Dioptre adjustment on left eyepiece Interpupillary adjustment 48-75mm
• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings
• Objectives: Anti-fungal treated Achromatic (DIN) objectives with mechanical tube length 160mm
• Focussing: Coaxial coarse and fine focusing mechanism (graduated 0.002mm) with upper stop. Adjustable tension of coarse focussing knob
• Condenser: Abbe condenser, N.A. 1.2 pre-centred
• Illumination: 1W LED with adjustable intensity
• LED Details: 1W, 6300K colour temperature, average lifetime approx. 50000h
• Voltage: External power supply 100/240V, 50/60Hz, output 5V D.C. 500mA
• Dimensions: (H)350mm x (W)170mm x (D)210mm
• Weight: 4kg
• Age Suitability: 11-18

Digital Camera Specification:

• Resolution: 1280 x 1024 pixels, 5:4 aspect ratio
• Pixel size: 2.8µm x 2.8µm
• Sensor: 1/3.2’CMOS
• Output: USB 2.0 port
• Framerate: 15fps (1280 x 1024) or 30 fps (640 x 480)
• S/N Ratio: 42.3dB
• Dynamic Pro Range: 71dB
• Exposure Time: 20s – 1/1000s
• Effective Digits: 10bit – on chip
• Sensitivity: 1.0 V/lux-sec (550nm)
• Software: OPTIKA Vision Lite for Windows XP, Vista, 7, 8 (32/64bit)
• Capture Features: Continuous auto white balance, continuous auto exposure
